OBT-400A Integrated Water Cooled TIG Orbital Welding Power Source 400A IGBT Inverter

Work Cycle : 10min

Recommended Distribution Box : 50KVA

Protection Class : IP21

Printer : Option

Display Screen : 10-inch touch screen

Packing Dimensions : 900x650x1020mm

Place of Origin : Shanghai, China

Certification : GB15579.1-2024

MOQ : 1 Set

Product Type : Integrated water cooled TIG orbital welding power source

Storage Temperature : -25~+55 degC

Dimensions L/W/H : 980x475x1020mm

Delivery Time : 20 days

Welding Current : 10A-400A

Input Voltage Fluctuation : 3x380V (-15%~+15%)

Temperature Environment : -10~+40 degC

Weight : 108Kg

Gross Weight : 137Kg

Model Number : OBT-400

Packaging Details : Wooden case

Model : OBT-400

Cooling Type : Air cooling

Payment Terms : 30% deposit,70% balance prior to delivery

Supply Ability : 20 Sets per Month

Frequency : 50/60Hz

Brand Name : HYZONT

Insulation Class : F

Manufacturing Standard : GB15579.1-2024

Main Power Voltage : 3x380V

Storable Programs : 200

Duty Cycle : 315A 100%; 400A 60%

Cos Phi / Efficiency : 0.98/78%

Price : Price on Request - please contact us for the latest quotation

Open Circuit Voltage : 70V

Power Rate : 21.5KVA

Power Supply Type : IGBT inverter arc welding power source

EMC Classification : A

Divisible Welding Section : 8

Water Pump Head : 30m/0.3MPa

Water Tank Capacity : 15L

Contact Now

OBT-400A Integrated Water Cooled TIG Orbital Welding Power Source

The OBT-400A is an integrated water-cooled TIG orbital welding power source mainly designed for all-position tube-to-tubesheet welding. It provides precise control over current, rotation, wire feeding, weaving arc length, shielding gas and compressed air, adopting an advanced PLC control system for stable and efficient welding programming and process control.

Why Choose the OBT-400A Orbital Welding Power Source

400A IGBT inverter core - reliable hardware ensures welding repeatability.
10-inch touch screen HMI - built-in system parameters for simple programming operation.
Chinese and English bilingual interface - operators with basic welding skills can handle it easily.
Real-time monitoring - displays welding voltage, current and stroke, with automatic current decay function.
Auto fault diagnosis and alarm, with modular structure design for convenient maintenance and servicing.

Power Source Specifications (OBT-400)

Parameter	Value
Model	OBT-400
Power supply type	IGBT inverter arc welding power source
Main power voltage	3x380V
Welding current	10A-400A
Duty cycle (0-40°C)	315A 100%; 400A 60%
Work cycle	10min
Open circuit voltage	70V
Input voltage fluctuation	3x380V (-15% ~ +15%)
Frequency	50/60Hz
Power rate	21.5KVA
Recommended distribution box	50KVA
Cosφ / efficiency	0.98 / 78%
Insulation class / protection class	F / IP21
Temperature environment	-10°C ~ +40°C
Transportation and storage temperature	-25°C ~ +55°C
Cooling type	Air cooling
Display screen	10-inch touch screen
Main control functions	Gas control, welding current control, rotary motion, wire feeding motion, weaving and arc length control
Storable programs	200
Divisible welding section	8
Printer	Option
Water pump head	30m / 0.3MPa
Water tank capacity	15L
L/W/H	980 x 475 x 1020mm
Weight	108Kg
Manufacturing standard	GB15579.1-2024
EMC classification	A
Packing dimensions	Wooden case 900 x 650 x 1020mm
Gross weight	137Kg

Welding Performance Characteristics

Carbon steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 37°, misalignment less than 10% of wall thickness.
Stainless steel with a thickness greater than 2.5 mm welded with a V-groove: single-side groove angle ≥ 45°, misalignment less than 10% of wall thickness.
Fit-up clearance: 0-0.5 mm.
Tack welds made in small, thin and dense spots.
Welding mode: the pipe remains stationary while the welding torch rotates to complete welding.
For multi-pass welding with grooved joints, AVC automatically tracks the arc length; the capping pass is completed by OSC weaving oscillation.

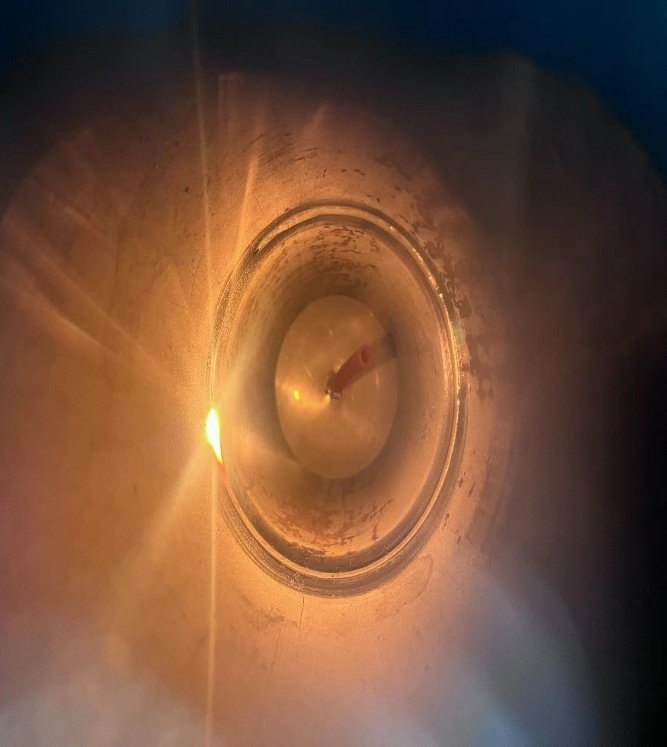

Product Images

OBT-400A Integrated Water Cooled TIG Orbital Welding Power Source 400A IGBT Inverter

Commercial Terms

Item	Value
Price	Price on Request - please contact us for the latest quotation
Price terms	FOB Shanghai
Lead time	20 days
Payment	30% deposit, 70% balance prior to delivery
Warranty	Within 12 months of the B/L
Installation and commissioning	Online guidance provided; on-site commissioning by technicians available at additional cost
